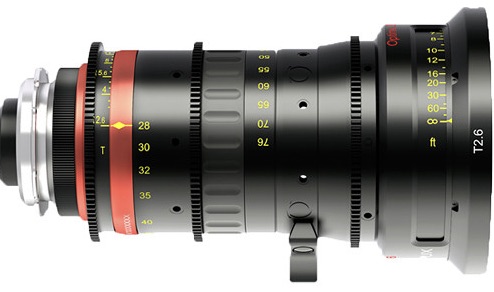

Angenieux 28-76 Optimo
MAIN FEATURES
- Superb image quality from T2.6 open aperture
- Compact and very light: 4.2 lbs – 1.92 kg
- Identical center of gravity on all Optimo lightweight zoom lenses enable quick lens interchange
- Perfect homogeneity of color, contrast and resolution.
- Low distortion. No ramping, minimal breathing, very fast for 2.7x zoom ratios
- Close focus of 2ft – 0.6 m enables extreme close-up shots • Internal focus, internal zoom, constant lens volume
- Interchangeable focus scale ring from feet to meters
- Compatible with Optimo 1.4x and 2x extenders
- 40 – 110 mm T3.7 (with 1.4x)
- 56 – 152 mm T5.2 (with 2x)
- Image coverage S35+ (31.4 mm diagonal), expanded to 35 mm diagonal when used with extenders Focal Length 28 mm 76 mm PV/EF Mounts ASU Lightweight Standard Zoom
- Precise and ergonomic focus ring with scale rotation of 320 degrees and over 50 focus witness marks 34.4° 14.7° Object dimensions at MOD (mm) 345×246 126×92 42.8° 16.4° Extenders or Format Adapters 1.4x & 2x ASU
- Adapted to extreme production environments (passive athermalisation from -20°C to +40°C)
- PL mount lens. Easily interchangeable to PV or Canon EF mounts
- Compatible with ASU servo unit (integrated motors for FTZ remote control through industry standard control systems)
| Focal Length | T-Stop | Minimum Focus | Image Coverage | Length | Front Diameter |
|---|---|---|---|---|---|
| Angenieux 28-76mm | T2.6 | 2′ | – | 186mm | 114mm |
