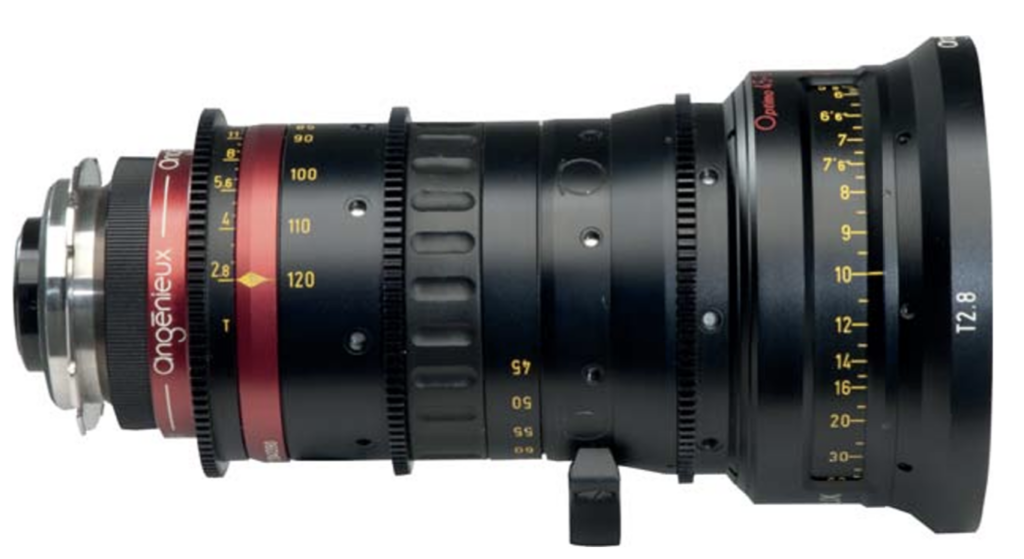

Angenieux 45-120 Optimo
MAIN FEATURES
- Superb image quality from T2.8 open aperture
- Compact and very light: 4.3 lbs – 1.9kg
- Identical center of gravity on all Optimo lightweight zoom lenses enable quick lens interchange
- •Perfect homogeneity of color, contrast and resolution.
- Low distorsion. No ramping, minimal breathing, very fast for 2.7x zoom ratios
- Internal focus, internal zoom, constant lens volume
- Precise and ergonomic focus ring with scale rotation of 320 degrees and over 50 focus witness marks
- Interchangeable focus scale ring from feet to meters
- Adapted to extreme production environments (passive athermalisation from -20°C to +40°C)
- Compatible with Optimo 1.4x and 2x extenders
63 – 168 mm 4 (with 1.4x)
90 – 240 mm T5.6 (with 2x)
- Image coverage S35+ (33.34 mm diagonal), expanded to 35 mm diagonal when used with extenders
- PL mount lens. Easily interchangeable to PV or Canon EF mounts
- Compatible with ASU servo unit (integrated motors for FTZ remote control through industry standard control systems)
Field of view for 35 mm Academy (22×16 mm)
Focal Length 45mm 120 mm
Horizontal angular field of view 27.4° 10.5°
Object dimensions at MOD (mm) 415×298 154×113
