Leitz Primes

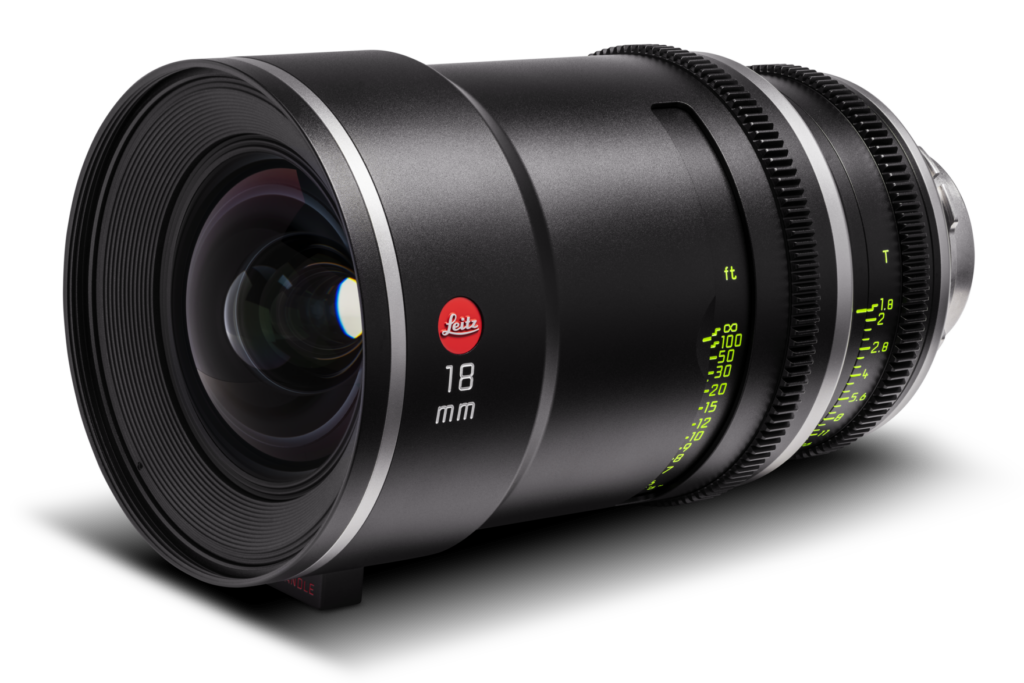

The LEITZ PRIME lenses
The 13 focal lengths from 18 mm to 350 mm in the set of LEITZ PRIME full frame cine lenses carry the name LEITZ with its exceptional heritage for a reason. They are the best of the best when it comes to their fast T1.8 aperture (180 mm T2, 350 mm T3.6), minimal breathing, exceptionally low distortion, and non-visible chromatic aberration.
With a consistent high resolution and illumination across the entire frame and a smooth focus roll off, the LEITZ PRIME lenses present a clean image to build any looks on and are well-suited for VFX, virtual production, and post production as well.
The LEITZ PRIME lenses colour match with the LEITZ ZOOM lenses, therefore making them a perfect set for all production needs. With a 114 mm front diameter you can also make use of the MACROLUX 114 diopters. The LEITZ PRIME lenses are available in PL and LPL mount with Cooke/i and LDS-2 metadata contacts.
Technical Specifications
| Aperture | T1.8 | T1.8 | T1.8 | T1.8 | T1.8 | T1.8 | T1.8 | T1.8 | T1.8 | T1.8 | T1.8 | T2 | T3.6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Circle | 46.5 mm | ||||||||||||
| Close Focus (ft) | 1’2” | 1’10” | 1’10” | 1’2” | 1’6” | 1’2” | 1’7” | 2’2” | 2’2” | 3’11” | 3’11” | 4’11” | 9’10” |
| Close Focus (m) | 0.35 | 0.55 | 0.55 | 0.35 | 0.45 | 0.35 | 0.47 | 0.65 | 0.75 | 1.2 | 1.2 | 1.5 | 3 |
| Horizontal angle of view “Full Frame” 36 mm x 24 mm | 90.0° | 81.2° | 71.5° | 63.7° | 54.4° | 48.5° | 39.6° | 31.0° | 27.0° | 20.4° | 15.2° | 11.4° | 5.9° |
| Horizontal angle of view “Super 35” 24.9 mm x 18.7 mm | 69.3° | 61.3° | 52.9 | 46.5° | 39.1° | 34.6° | 28.0° | 21.7° | 18.8° | 14.2° | 10.5° | 7.9° | 4.1° |
| Weight (lb) | 7.1 | 6.1 | 6.2 | 5.9 | 6.3 | 6.0 | 6.0 | 6.1 | 6.2 | 6.1 | 6.4 | 6.8 | 9.7 |
| Weight (kg) | 3.2 | 2.76 | 2.8 | 2.67 | 2.87 | 2.71 | 2.7 | 2.78 | 2.83 | 2.77 | 2.89 | 3.1 | 4.4 |
| Length (in/mm) | 7.9″ / 201.5 | 7.2″ / 183.7 | 7.2″ / 183.7 | 7.2″ / 183.7 | 7.2″ / 183.7 | 7.2″ / 183.7 | 7.2″ / 183.7 | 7.2″ / 183.7 | 7.2″ / 183.7 | 7.2″ / 183.7 | 7.2″ / 183.7 | 7.9″ / 201.5 | 12.5″ / 317 |
| Lens Mount | PL, LPL with Cooke/i | ||||||||||||
| Front Diameter | 114 mm | ||||||||||||
| Front Filter | Rear Filter | M 112 mm x 1.5 mm screw-in | Via net holder | ||||||||||||
| Matched Focus/Iris Ring Locations | All focal lengths | ||||||||||||
| Focus Rotation | Iris Rotation | 270° (except 18 mm 207°) | 66° (except 180 mm 63°; 350 mm 49°) | ||||||||||||
| Focus Scales | Turnable scales, easy change from imperial to metric | ||||||||||||
| Iris Blades | Iris Shape | 15 Blades (except 350 mm 21 Blades) | Circular through all stops | ||||||||||||
| Color Matching | Matched with LEITZ ZOOM lenses | ||||||||||||
T1. FULL-FRAME
18, 21, 25, 29, 35, 40, 50, 65, 75, 100, 135, 180 & 350mm
